Economic Traders ( Guj. ) Pvt. Ltd.

Ø High Speed Diesel Engines ( Single Cylinder / Water Cooled ) >>

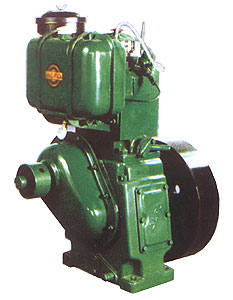

8 hp, TV Type

Technical Data

Engine Type	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
01. Output - hp / KW	4.5/3.3	5/3.7	6.5/4.8	8/5.9	9/6.6	10/7.35	10/7.35	12.5/9.20
02 RPM	2050	1500	1500	1600	1600	1800	1500	1500
03. Bore	76 mm	80 mm	85 mm	87.5 mm	95 mm	95 mm	102 mm	114.3 mm
04. Stroke	76 mm	110 mm	110 mm	110 mm	110 mm	110 mm	110 mm	110 mm
05.Cubic Capacity (SWEPT VOL.)	345 cc	553 cc	625 cc	661 cc	780 cc	780 cc	798 cc	1128 cc
06. Fuel Tank Capacity	3.5 litres	9 litres	9 litres	9 litres	9 litres	11.5 litres	11.5 litres	11.5 litres
07. Fuel Injection Equip.	Mico/Jay	Mico/Jay	Mico/Jay	Mico/Jay	Mico/Jay	Mico/Jay	Mico/Jay	Mico/Jay
08. Fuel Consumption	251 g / kWh	251 g / kWh	251 g / kWh	251 g / kWh	251 g / kWh	251 g / kWh	251 g / kWh	251 g / kWh
09. Lubrication Oil	Yentrol-42	Yentrol-42	Yentrol-42	Yentrol-42	Yentrol-42	Yentrol-42	Yentrol-42	Yentrol-42
10. Lub. Oil Consumption / HR / hp	1.3 cc	1.6 cc	1.6 cc	1.6 cc	1.6 cc	1.6 cc	1.6 cc	1.6 cc
11. Net Weight	85 kg	150 kg	150 kg	155 kg	155 kg	180 kg	170 kg	195 kg
12. Taper Roller Bearing	501349/10	32211	32211	32211	32211	32211	32211	32211
13. Dimension [cm)	58x48x71	61x58x89	61x58x89	61x58x89	72x62x89	72x62x89	72x62x89	72x62x89
15. Standard Accessories	Fuel Tank, Exhaust Silencer, Air Cleaner, Starting Handle, Spanner Set & Screw Driver.
